Installing the Underfloor Heating System

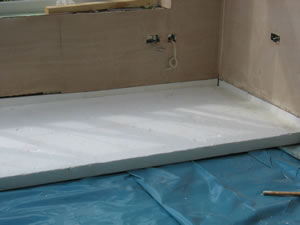

Laying the Jabfloor over the damp proof membrane

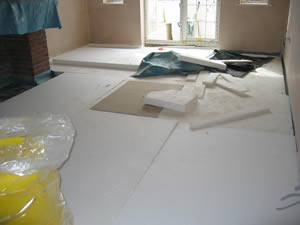

The Jabfloor is cut to fit so there are no gaps allowing cold bridging

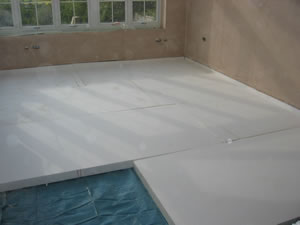

The insullation is down and we are ready to lay the Hepworth underfloor heating

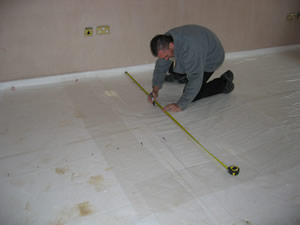

We have marked the layout of the vapour barrier at the correct centres for laying the pipe.

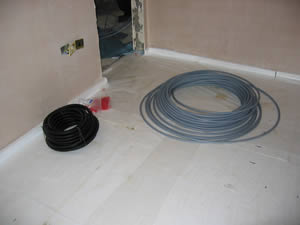

TWe assembled the materials - pipe, clips and sleve for door way.

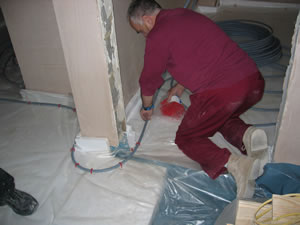

Laying the pipe and fitting the staples as required

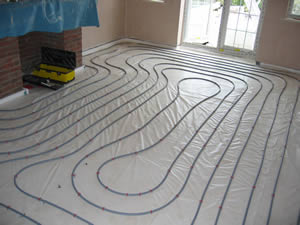

Now we have a finished room
